AutoMQ vs. Apache Kafka Benchmarks and Cost

AutoMQ is a cloud-native reimplementation of Apache Kafka's storage layer utilizing cloud storage. It not only maintains complete compatibility with Apache Kafka's API but also achieves a 17x cost efficiency compared to Apache Kafka under 1GiB/s traffic. The monthly TCO decreases from $226,671 for Apache Kafka to $12,899. The detailed cost breakdown is shown in the table below:

Comparison Item	AutoMQ	Apache Kafka
Compute	$2,859	$18,447
Storage	$5,961	$69,984
S3 API	$3,952	$0
Cross-availability zone traffic cost	$128	$138,240
Total	$12,899	$226,671

Benchmark Preparation

Conduct performance testing on a Topic with 256 partitions at a traffic speed of 1 GiB/s for both production and consumption.

AutoMQ Cluster

AutoMQ can be deployed on Kubernetes using the Bitnami Kafka Helm Chart. You can refer to Install AutoMQ by Helm Chart to deploy a 3-availability zone AutoMQ cluster on AWS:

• A total of 6 nodes, including 3 servers and 3 brokers, are evenly distributed across 3 availability zones;

• The selected physical node type is m7g.4xlarge, featuring a specification of 16 cores and 64GB of RAM, a network baseline of 960 MiB/s, and priced at $476.544 per month.

Load Tester

Stress machines are deployed across 3 availability zones, with one m7g.4xlarge in each zone, simulating multi-availability zone business loads. The performance testing is conducted using the automq-perf-test.sh script provided by AutoMQ, configured as follows:

KAFKA_HEAP_OPTS="-Xmx32g -Xms32g" nohup ./bin/automq-perf-test.sh --bootstrap-server $bootstrap_server  --record-size 1024 --topics 1 --partitions-per-topic 256 --topic-prefix perf --producers-per-topic 20 --groups-per-topic 1 --consumers-per-group 20 --send-rate 349525 --warmup-duration 2 --test-duration 30 --producer-configs batch.size=1048576 linger.ms=100 buffer.memory=67108864 max.request.size=33554432 client.id='automq_az=apse1-az1' --consumer-configs fetch.max.bytes=104857600 max.partition.fetch.bytes=104857600 client.id='automq_az=apse1-az1' --reset &> nohup.log &

KAFKA_HEAP_OPTS="-Xmx32g -Xms32g" nohup ./bin/automq-perf-test.sh --bootstrap-server $bootstrap_server ... client.id='automq_az=apse1-az2' --await-topic-ready false &> nohup.log &

KAFKA_HEAP_OPTS="-Xmx32g -Xms32g" nohup ./bin/automq-perf-test.sh --bootstrap-server $bootstrap_server ... client.id='automq_az=apse1-az3' --await-topic-ready false &> nohup.log &

With this configuration, the load tester simulates the following scenario:

• A total of 60 Producers and 60 Consumers are evenly distributed across 3 availability zones, marked with client.id=automq_az=apse1-az1 to indicate the availability zone affiliation of the client.

• Send 1,048,575 Records per second, each of 1 KiB in size, totaling 1 GiB/s of data.

• Sending parameters are additionally configured with batch.size=1048576 and linger.ms=100 to achieve better batching performance, suitable for most high-throughput Kafka scenarios.

Costs

In a scenario where data is retained for 3 days (log.retention.hours=72), using AWS us-east-1 region as an example, the total cost of ownership for AutoMQ is $12,899 per month. The total cost includes expenses for computation, storage, S3 API, and cross-availability zone traffic.

• Computation: AutoMQ utilized 6 m7g.xlarge instances in this benchmarking scenario, totaling a computing resource cost of 6 * $476.544 = $2,859 per month.

• Storage: Traffic * 3 days * S3 price per unit = 1 * (60 * 60 * 24 * 3) * 0.023 = $5,961 per month.

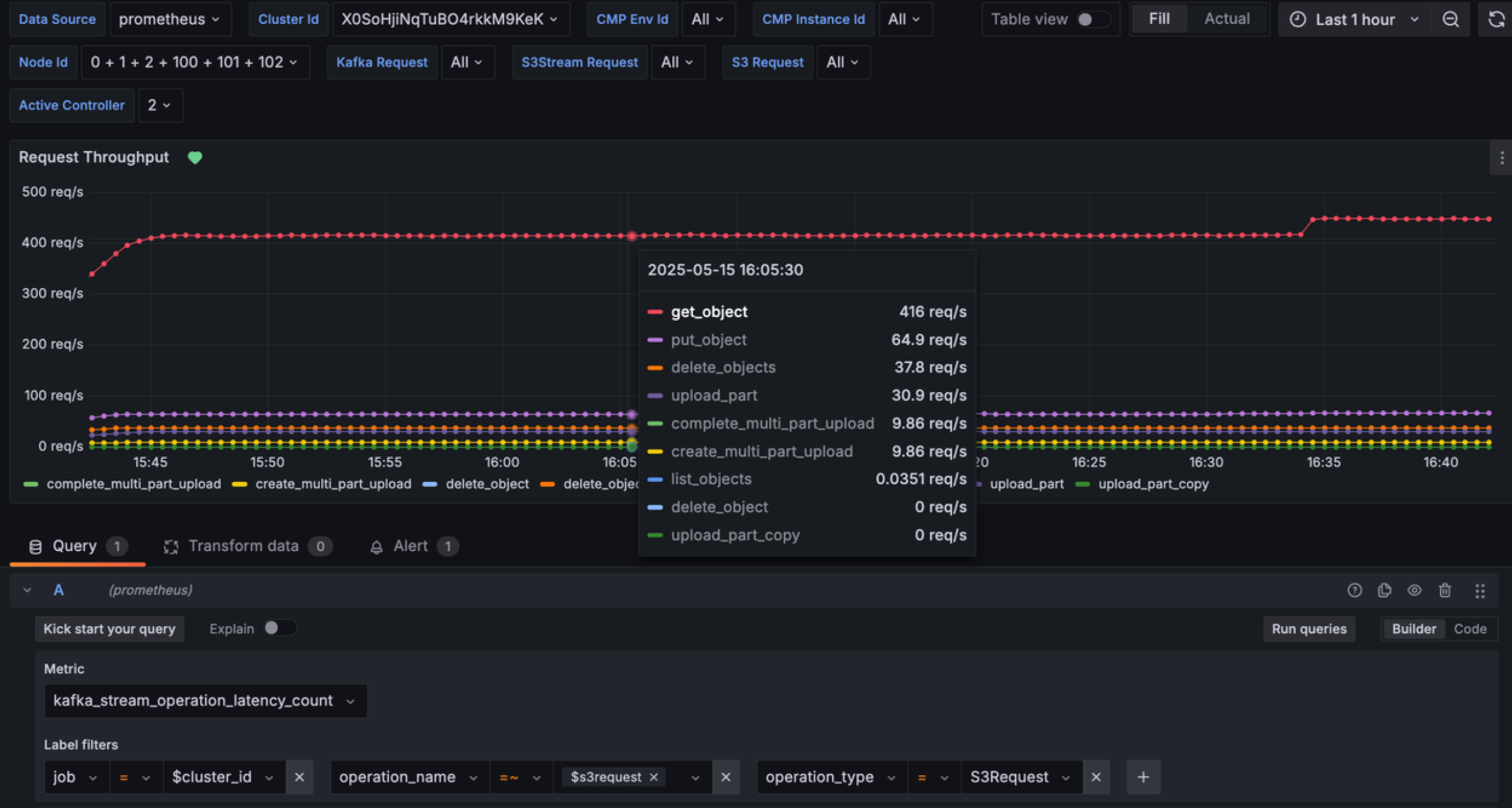

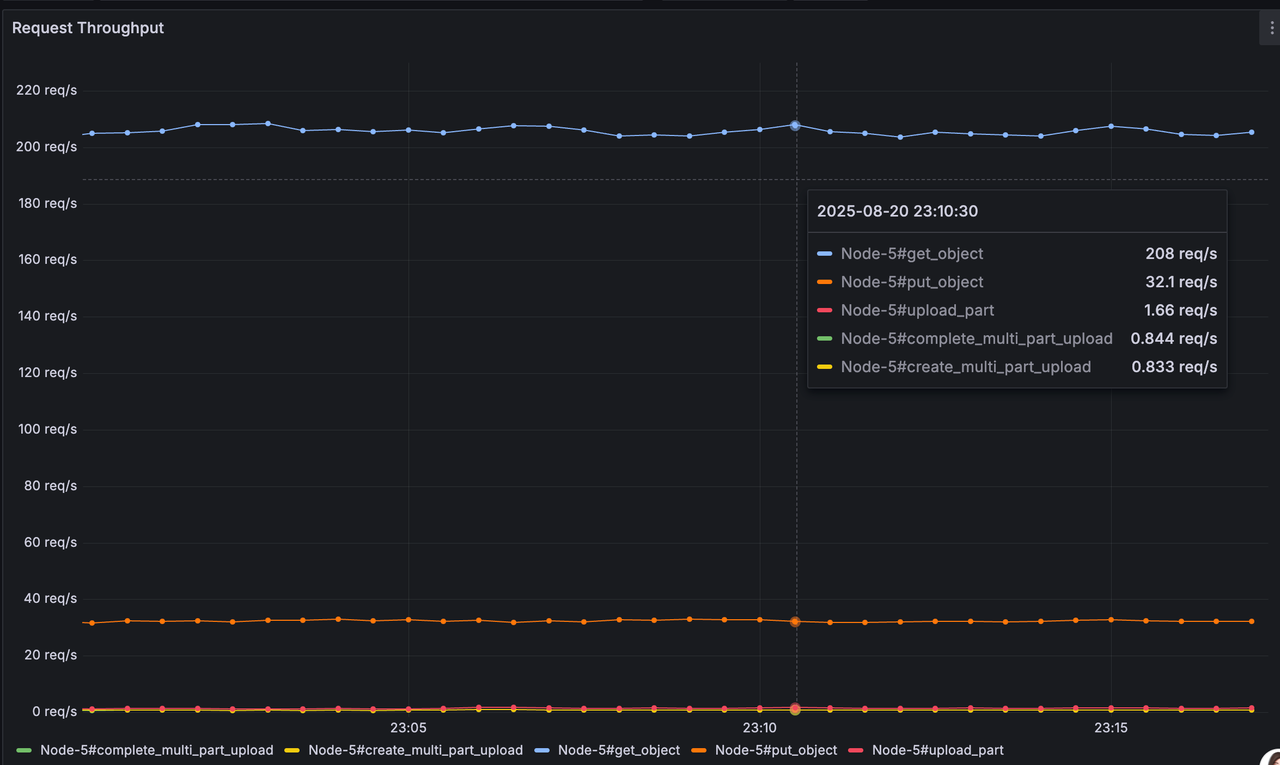

• S3 API: Under this traffic, the average Get is 1,278/s and Put is 202.662/s, resulting in a cost of $3,952 per month.

• Cross-availability zone traffic: Although AutoMQ is designed for clients to send and receive messages only with Brokers within the same availability zone, there is still a small amount of RPC requests between Brokers to synchronize KRaft metadata and forward ZoneRouterProduceRequest. We collected cross-availability zone traffic on Broker nodes using iftop -t -s 60 -L 100. The average cross-availability zone Network In + Network Out for one node is 0.84 MiB/s. Therefore, the cross-availability zone traffic cost for 6 nodes is 0.84 / 1024 * 6 * (60 * 60 * 24 * 30) * 0.01 ~= $127 per month.

The total cost of AutoMQ is calculated as follows: compute + storage + S3 API + cross Availability Zone (AZ) traffic ~= $12,899 per month.

Compared to Apache Kafka, This Represents a 14x Cost Reduction.

The same workload on Apache Kafka requires $65,385 per month, which is 14 times that of AutoMQ. The total cost of ownership includes compute, storage, and Inter-Zone traffic.

• Storage: To store 253.125 TiB of data (calculated as 1 / 1024 * (60 * 60 * 24 * 3)), and considering three replicas, 759.375 TiB of space is needed. Taking into account buffer and uneven data distribution, and assuming a 50% effective disk utilization rate, 1,518.75 TiB of disk space is necessary. To save on disk storage costs, st1 storage medium is used, leading to a storage cost calculation of 1,518.75 * 1024 * 0.045 = $69,984 per month.

• Compute: With a maximum EBS volume size of 16 TiB, at least 95 volumes are needed, corresponding to 95 Brokers. Following production practices, the minimum recommended instance type is r4.xlarge, costing $18,447.1 per month.

• Cross Availability Zone traffic: Assuming a uniform distribution of partitions and traffic, 2/3 of production traffic is sent across AZs. Consumption can be optimized to avoid cross AZ traffic using Fetch From Follower. Fetch From Follower implies that replicas are distributed across 3 AZs, generating two additional sets of production traffic among Broker ISR. Overall, cross AZ traffic is calculated as: production traffic * (2 / 3 + 2) * 30d = 1024 * (2 / 3 + 2) / 1024 * (60 * 60 * 24 * 30) * 0.02 = $138,240 per month.

The total cost of Apache Kafka is: compute + storage + cross AZ traffic = $226,671 per month.

In addition to reducing static costs, the stateless architecture of AutoMQ delivers further cost advantages:

• AutoBalancing: AutoMQ includes a load balancing component within the Controller, which automatically balances the load based on traffic between nodes. Partition reassignment is completed in less than 2 seconds, eliminating the need for manual load balancing by operations personnel.

• No Overprovisioning: With stateless nodes and second-level partition reassignments, AutoMQ can scale up or down within minutes—most of the time is spent on resource preparation. After expansion, load balancing is completed in seconds. AutoMQ does not require pre-reserving resources for peak times or handling load balancing at the hour level.

Performance:

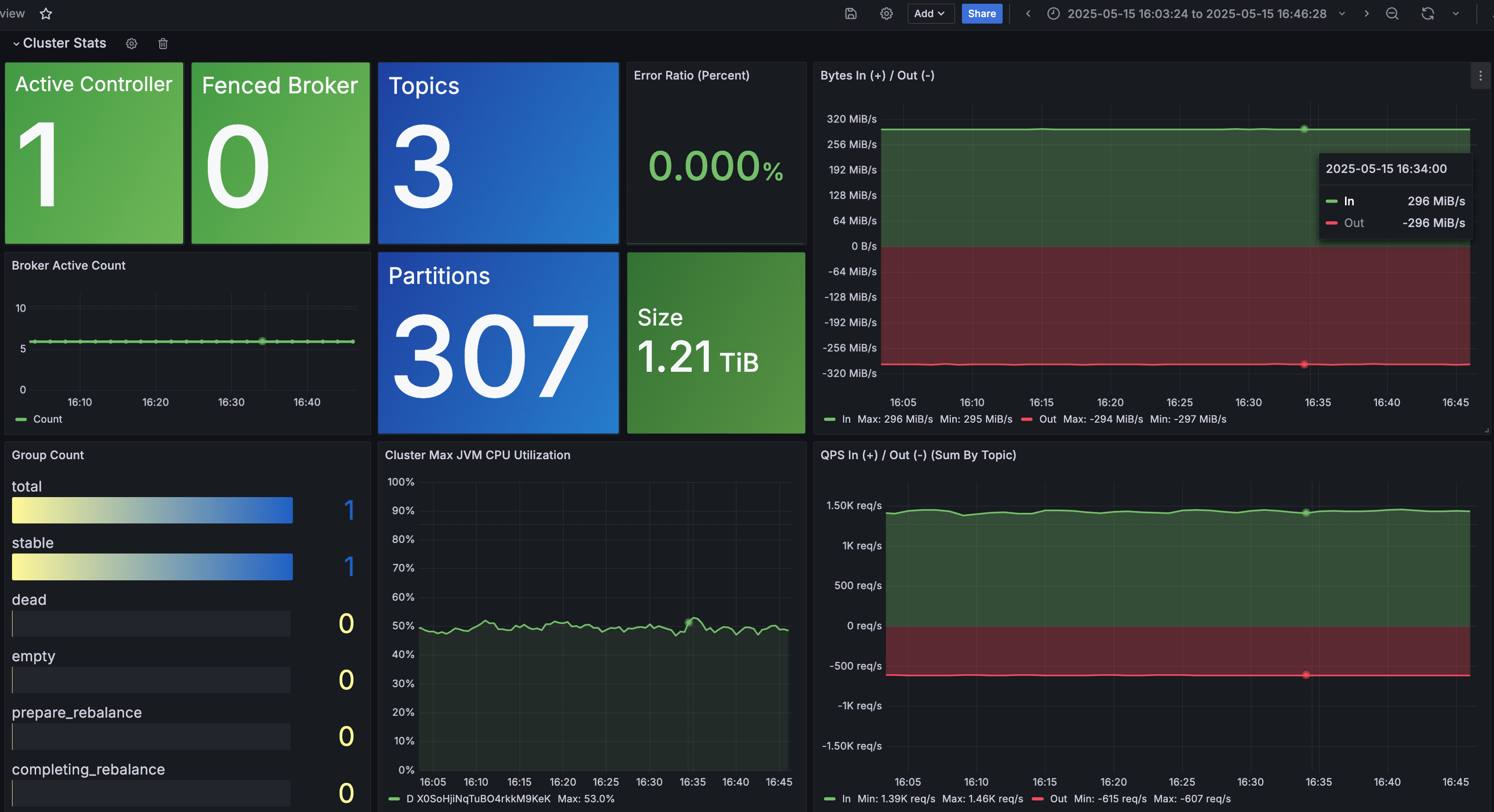

The CPU utilization of each AutoMQ Broker is at 50%. There is ample idle CPU capacity to handle traffic spikes and more small packet requests.

AutoMQ uses 8MiB / 250ms batching parameters by default when writing to S3. The Producer uses ack=all, and a record is only acknowledged as successful to the client after it is persisted to S3. In this test, the latency performance is as follows:

-	AVG	P50	P99	P999
Produce	472ms	465ms	823ms	1049ms
E2E	631ms	602ms	1189ms	1549ms

If lower latency is needed, you can adjust the batchInterval parameter in the configurations of s3.wal.path and automq.zonerouter.channels to reduce the wait time for batching writes to S3. However, achieving lower latency will increase the cost of S3 APIs.
