AutoMQ's S3-based shared storage architecture can help minimize inter-broker and Inter-Zone (AZ) replica replication, as well as client Inter-Zone data read and write traffic. This document outlines how to use AutoMQ to reduce Inter-Zone transmission traffic.

In this document, AZ stands for Availability Zone, specifically referring to a zone provided by cloud service providers in a public cloud environment. Each independent AZ may be supported by a separate data center facility.

Problem Background​

Apache Kafka Inter-Zone Traffic Analysis​

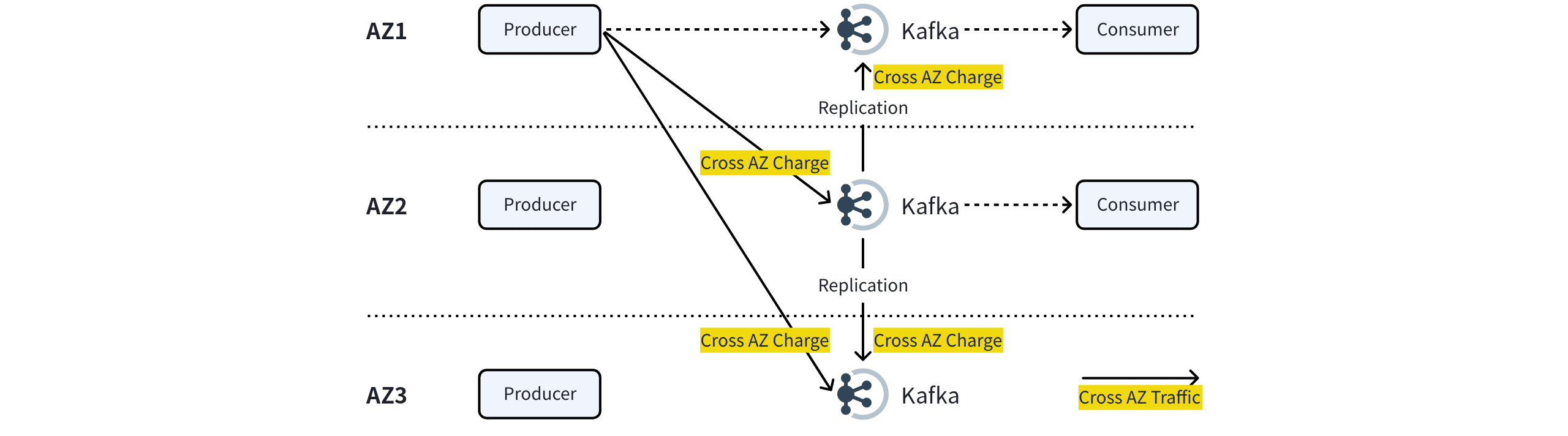

When users deploy Apache Kafka across multiple AZs in AWS or GCP cloud environments, enabling multi-AZ service disaster recovery also introduces Inter-Zone data transmission costs. In large-scale clusters, these traffic costs can account for 60-70%.

  • Inter-Zone Production Traffic: If the Producer has not specified a ShardingKey, and partitions are distributed equally across cluster nodes, at least two-thirds of the Producer's traffic will traverse across AZs. For instance, Producers located in AZ1 will route one-third of their traffic to both AZ2 and AZ3.

  • Server-Side Inter-Zone Replication Traffic: After messages reach the Kafka Broker, it ensures high reliability by replicating the data to Brokers situated in different AZs, effectively doubling the Inter-Zone traffic generated by the Produce operation.

  • Inter-Zone Consumption Traffic: Consumers have the option to configure client.rack to consume partitions/replicas within the same AZ, thus preventing the generation of Inter-Zone traffic.

AutoMQ Eliminates Inter-Zone Data Transfer​

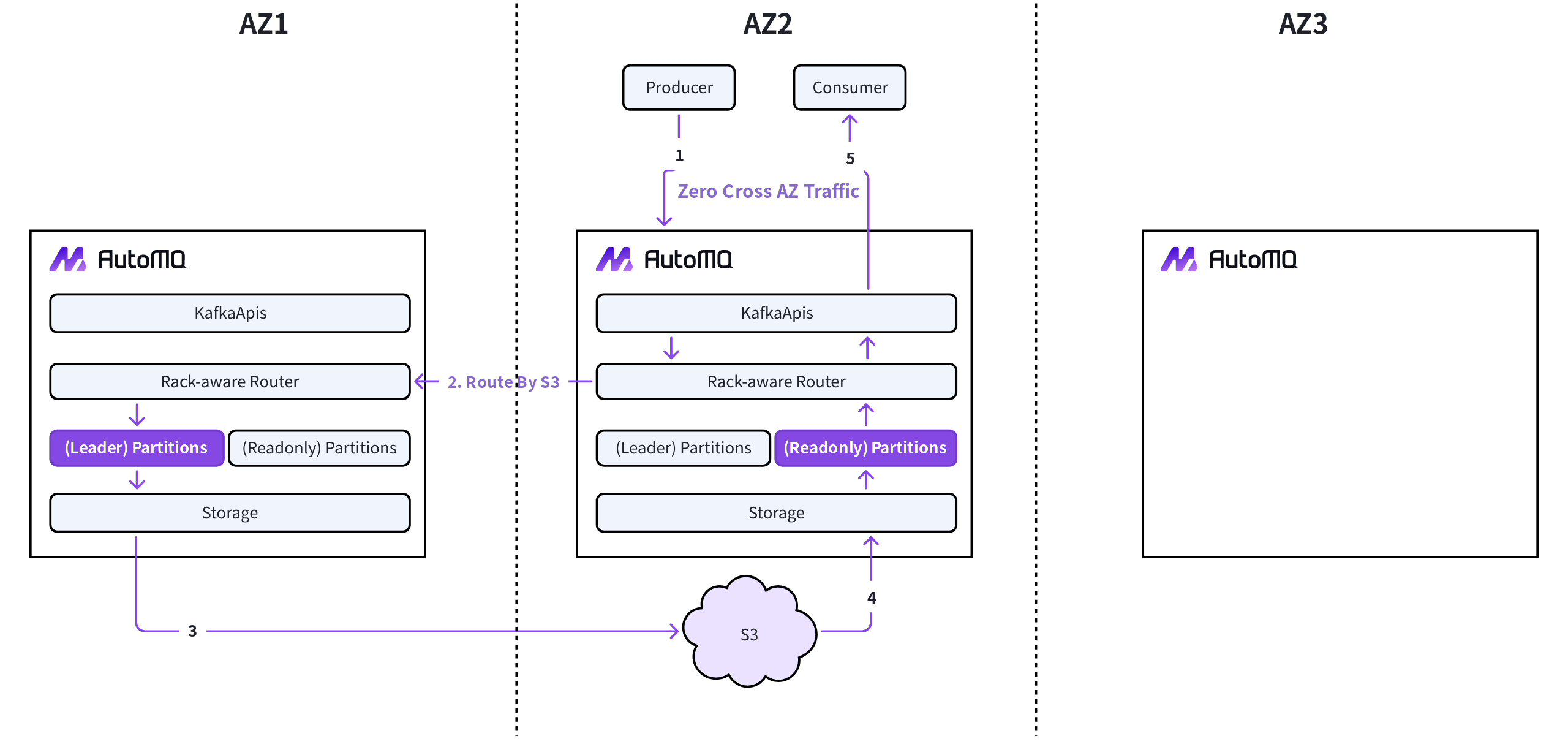

AutoMQ utilizes an architecture that separates storage and compute by leveraging S3, resulting in zero Inter-Zone traffic costs based on S3:

  • Production Traffic: AutoMQ's built-in Proxy layer intercepts and identifies Produce requests that cross Availability Zones (AZs). It establishes Inter-Zone proxy channels based on S3, forwarding these Produce requests to the actual partition Leader. Producers only need to communicate with Broker nodes within the same AZ, thus avoiding Inter-Zone traffic costs.

  • Replication Traffic: AutoMQ leverages S3 as a shared storage layer, with S3 utilizing erasure coding to create multiple replicas across various AZs. Consequently, no Apache Kafka replication traffic occurs between AutoMQ Broker nodes.

  • Consumption Traffic: Besides the Leader partition, AutoMQ establishes a read-only partition in each additional AZ. These read-only partitions directly access data written by the Leader partition from S3 on-demand. Therefore, consumers only need to communicate with the Leader partition or a read-only partition within the same AZ, avoiding any Inter-Zone traffic costs.

Configuration Documentation​

To eliminate Inter-Zone data transfer using AutoMQ's Inter-Zone data routing feature, configuration must be enabled on both the server and client sides. The relevant configuration documentation is as follows:

After configuration is complete, you can conduct data sending and receiving tests, and refer to the Monitor Inter Zone Traffic▸ document to observe the actual inter-availability zone traffic generated.
