Apache Kafka's exceptional performance and reliability as a distributed event streaming platform are largely attributed to its intelligent use of the operating system's page cache. This core design decision enables Kafka to achieve high throughput and low latency without requiring extensive application-level caching. This blog explores how Kafka leverages the page cache, its performance implications, configuration best practices, and common challenges.

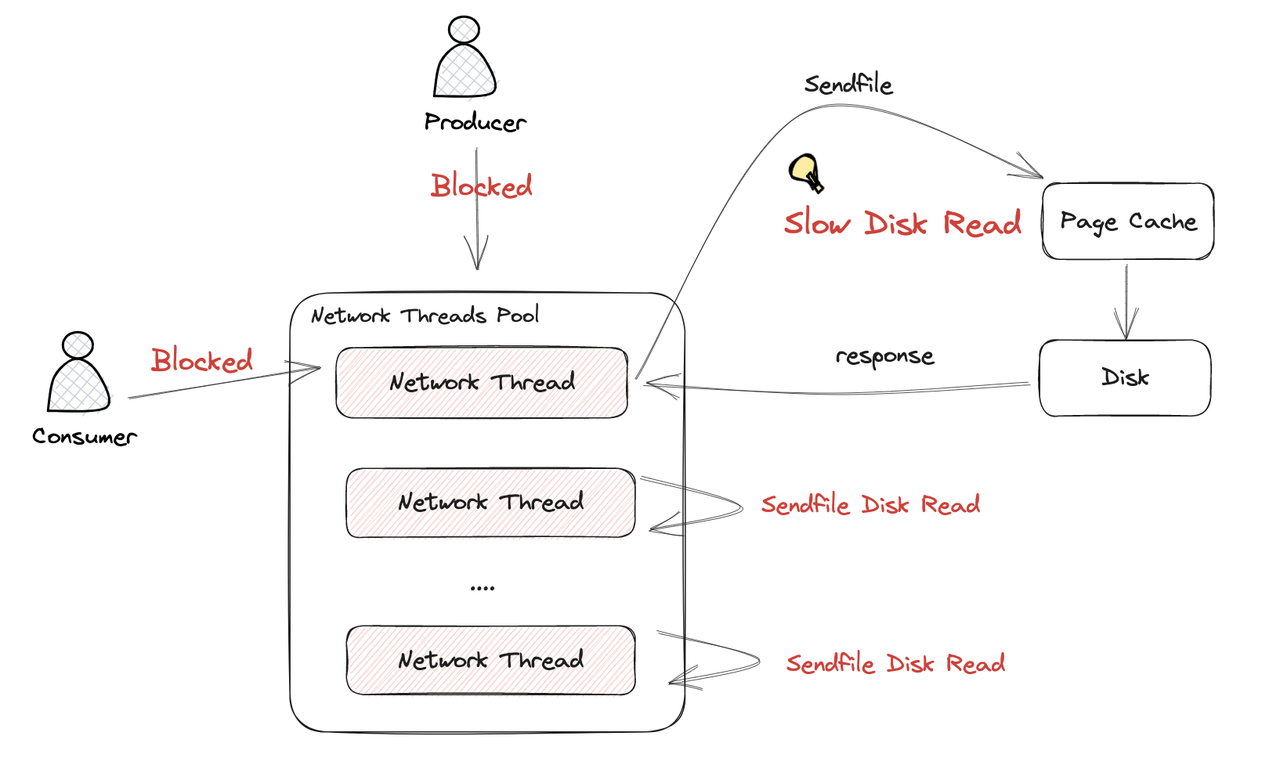

Although Kafka Page Cache brings many advantages to Kafka, it can cause serious performance issues due to Page Cache pollution when disk reads occur. If you are looking for a solution to this problem, you can read: How AutoMQ addresses the disk read side effects in Apache Kafka

Understanding the Page Cache in Kafka's Architecture

The page cache is a transparent buffer maintained by the operating system that keeps recently accessed file data in memory. Kafka's architecture is specifically designed to take advantage of this system feature, rather than implementing its own complex caching mechanisms.

Zero Copy Principle

At its core, Kafka operates on the "Zero Copy" principle, which is fundamental to its performance. This means:

1. Kafka transfers data in byte format without inspecting or modifying it

2. No data verification occurs at the cluster level

3. Data moves directly from disk to network (or vice versa) without unnecessary copying

This approach provides significant performance improvements compared to traditional methods that involve multiple data copies between channels. The zero-copy mechanism allows Kafka to avoid copying data into user space, reducing CPU overhead and improving throughput.

How Kafka Utilizes the Page Cache

Kafka brokers make heavy use of the operating system's page cache to maintain performance. When data is written to Kafka:

1. Data is written to the page cache first

2. The OS eventually flushes these pages to disk asynchronously

3. Kafka doesn't explicitly issue commands to ensure messages are persisted (sync)

4. It relies on the OS to efficiently manage when data is written to physical storage

For reads, Kafka similarly leverages the page cache:

1. Consumer requests are served from the page cache when possible

2. The OS handles prefetching data through techniques like readahead

3. Sequential read patterns are automatically detected and optimized by the kernel

This approach differs from many databases that implement application-level caches. Kafka's reliance on the page cache is particularly effective because messaging workloads typically involve sequential reads and writes, which the Linux kernel has been optimized to handle efficiently.

Performance Implications of Page Cache Usage

Kafka's page cache utilization directly impacts its performance metrics, particularly throughput and latency.

Throughput Benefits

In benchmark tests, Kafka has demonstrated impressive throughput capabilities:

• Achieving 200K messages/second or 200 MB/second on appropriate hardware

• Performance scaling with increased disk throughput (from HDD to SSD to NVMe)

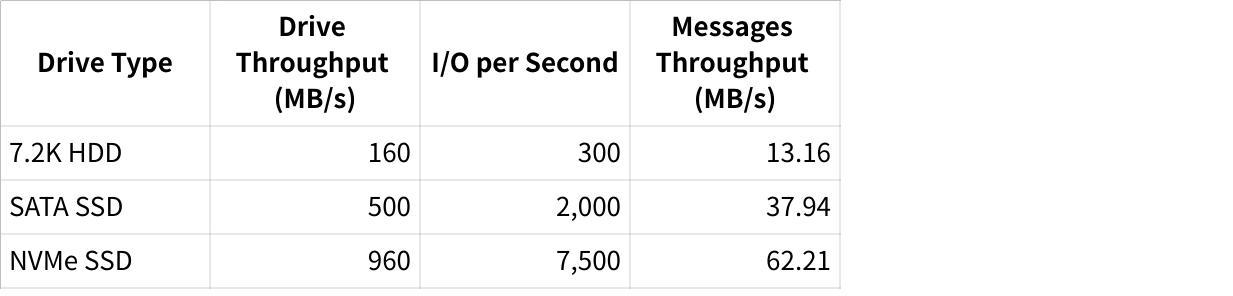

Table 1: Kafka performance scaling with storage technology (benchmark with 600M 100-byte messages)

Latency Benefits

The page cache significantly reduces latency for Kafka operations:

• Reads served from the cache have consistently low latency

• When consumers keep up with producers, almost all reads come from the cache rather than disk

• End-to-end latency can be kept in the millisecond range even at high throughput

Configuring Systems for Optimal Page Cache Usage

To maximize Kafka's performance, proper system configuration is essential, particularly related to memory management and virtual memory behavior.

Critical Linux Kernel Parameters

These parameters can be set persistently by adding them to /etc/sysctl.conf .

Memory Allocation Considerations

For optimal Kafka performance:

1. Dedicated Resources : Run Kafka standalone on its own VM or physical server so available RAM is primarily used for page cache

2. JVM Heap Size : Configure the JVM heap size appropriately

   • Too large: Reduces memory available for page cache

   • Too small: Increases garbage collection overhead

3. Memory Mapping : Each log segment requires index files that need memory map areas

   • Production deployments with many partitions may exceed default OS limits

   • Increase vm.max_map_count accordingly

Common Challenges and Solutions

Running Kafka in Kubernetes

Kubernetes environments present unique challenges for Kafka's page cache utilization:

1. Shared Resources : In Kubernetes, the page cache is shared between multiple applications, meaning the amount of data Kafka can cache is never guaranteed

2. Resource Competition : When other applications run on the same node as Kafka, they can evict Kafka's data from the page cache

3. Pod Isolation : Kubernetes cgroups limit memory but don't provide isolation for page cache usage

Solutions:

• Use node affinity/anti-affinity rules to isolate Kafka pods

• Consider dedicated nodes for Kafka brokers

• Implement resource limits that account for both heap and page cache needs

Interference from Other Applications

When Kafka coexists with other disk-intensive applications, performance can degrade due to page cache competition:

1. Cassandra Co-location Issue : Running Cassandra alongside Kafka can increase page faults in Kafka pods even when memory resources appear available

2. Increased Disk I/O : More page faults lead to more writes to disk, hampering sequential I/O benefits and potentially depleting storage burst capacity

Solutions:

• Isolate Kafka from other disk-intensive applications

• Consider application-specific tuning (e.g., Cassandra uses fadvise to optimize its page cache footprint)

• For AWS EBS or similar volumes, monitor burst balance carefully

Best Practices for Kafka and Page Cache

Hardware Recommendations

1. Storage Selection :

   • SSDs significantly outperform HDDs for Kafka workloads

   • NVMe drives provide even greater performance benefits

   • Higher drive throughput directly translates to higher sustainable message rates

2. Memory Sizing :

   • Allocate sufficient RAM for both JVM heap and page cache

   • General guideline: 32GB+ RAM for production Kafka brokers

   • More memory allows more data to remain cached

3. Network Configuration :

   • Ensure network bandwidth isn't a bottleneck

   • In test environments with 10Gb NICs, storage was typically the limiting factor

Operational Recommendations

1. Monitoring Page Cache Efficiency :

   • Track cache hit ratios

   • Monitor disk I/O patterns

   • Watch for unexpected page faults

2. Scaling Considerations :

   • Scale horizontally when individual broker performance reaches limits

   • Add brokers when page cache pressure becomes too high

   • Consider partition reassignment to balance load across brokers

3. Maintenance Operations :

   • Schedule maintenance operations during low-traffic periods

   • Be aware that operations like partition reassignment can flush cache contents

   • Allow time for page cache to "warm up" after maintenance

Swap Space Management

Despite common advice to disable swap entirely for Kafka, some research suggests that maintaining a small amount of swap can be beneficial:

• Setting vm.swappiness=1 (not 0) allows the kernel to swap out truly inactive pages

• This can free up more memory for the page cache

• Only completely unused applications or libraries get swapped, not active Kafka data

Alternative Approaches: Beyond Page Cache

Redpanda's Custom Memory Management

Redpanda, a Kafka-compatible streaming platform, uses a different approach:

1. Allocates RAM specifically for the Redpanda process instead of relying on the page cache

2. Implements hyper-efficient caching with buffers adjusted according to hardware performance

3. Uses Direct Memory Access (DMA) and aligns cache with the filesystem

4. Shares cache across all open files, allowing heavily used partitions to access additional buffer space during spikes

This approach potentially offers advantages in containerized environments where page cache behavior is less predictable.

In-Memory Solutions

For specific use cases where extreme performance is required:

• Some specialized systems use memory-mapped files to keep latency low

• However, these require careful consideration of durability guarantees

• May require fsync() calls to ensure data is persisted

Conclusion

Kafka's intelligent use of the Linux page cache is a key architectural decision that enables its high performance and efficiency. By leveraging the operating system's existing mechanisms rather than implementing complex application-level caching, Kafka achieves impressive throughput and latency characteristics while maintaining reliability.

Proper configuration of both the operating system and Kafka itself is essential to maximize the benefits of page cache usage. This includes tuning Linux kernel parameters, allocating appropriate resources, and implementing operational best practices.

As workloads grow and environments evolve, particularly with the rise of containerization, understanding Kafka's page cache utilization becomes increasingly important. Whether optimizing existing Kafka deployments or considering alternative platforms like Redpanda, knowledge of how these systems interact with memory and storage is critical for achieving optimal performance.

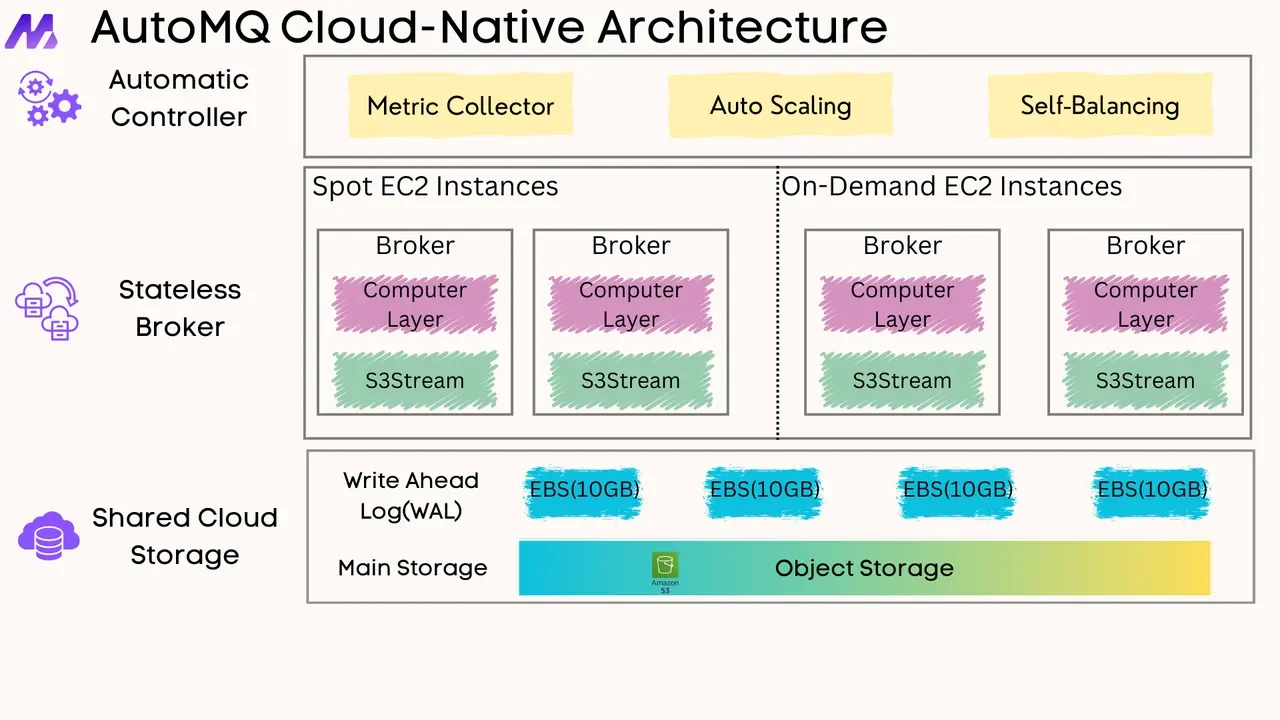

If you find this content helpful, you might also be interested in our product AutoMQ. AutoMQ is a cloud-native alternative to Kafka by decoupling durability to S3 and EBS. 10x Cost-Effective. No Cross-AZ Traffic Cost. Autoscale in seconds. Single-digit ms latency. AutoMQ now is source code available on github. Big Companies Worldwide are Using AutoMQ. Check the following case studies to learn more:
