Overview
Apache Kafka and NATS represent two distinct approaches to message-oriented middleware for distributed systems. This article provides a detailed comparison of these technologies to help you understand their strengths, differences, and optimal use cases. As modern applications increasingly adopt event-driven and microservices architectures, choosing the right messaging system becomes crucial for system performance, scalability, and reliability.
Architecture and Complexity
Core Concepts
Apache Kafka is a distributed event streaming platform built with a focus on durability, scalability, and high throughput. Originally developed at LinkedIn and later open-sourced, Kafka has evolved into a robust ecosystem for handling massive data streams[2].
NATS is a lightweight, high-performance data layer designed for simplicity and operational efficiency across environments. It consists of two main components: Core NATS (the base messaging framework) and JetStream (which adds persistence capabilities)[2][11].
Design Philosophy

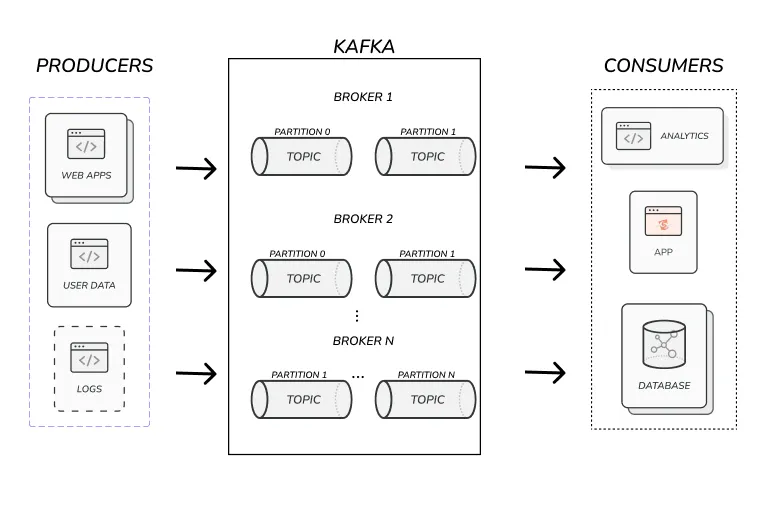

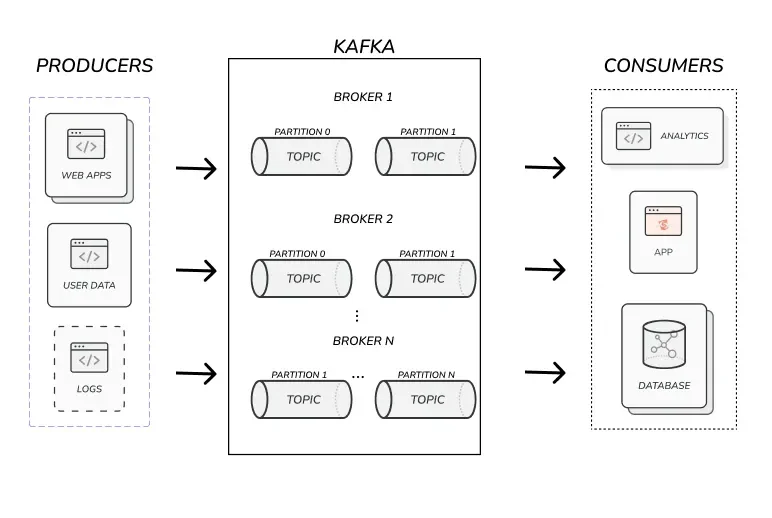

Kafka's architecture is built around logs – an append-only, immutable data structure. It organizes data into topics with multiple partitions distributed across brokers. Historically, Kafka required Zookeeper for coordination, though newer versions support KRaft mode without this dependency[1][2].

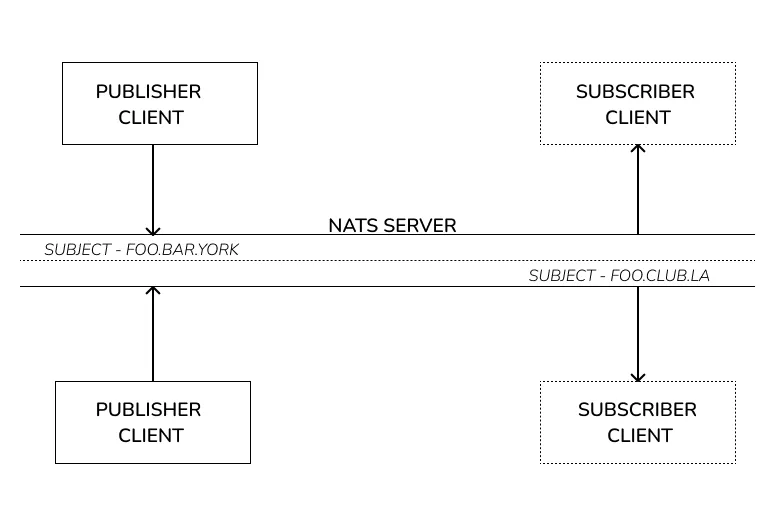

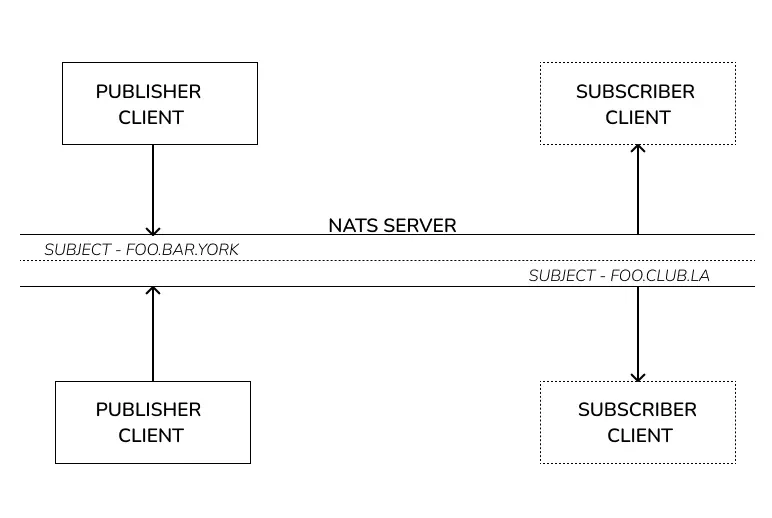

NATS emphasizes simplicity with a clean, straightforward design:
"Even if you take the zookeepers out of the picture, NATS remains much 'lighter' to run than Kafka. There are a lot of things that NATS does 'out of the box' for which with Kafka you would have to deploy Kafka Streams, connectors, and mirror maker or Replicator nodes on top of your broker nodes."[1]
Implementation Differences
| Aspect | Kafka | NATS |
|---|---|---|
| Implementation Language | Java (JVM-based) | Go |
| Binary Size | JVM plus JARs (larger) | Single binary \<15MB |
| Infrastructure Requirements | Higher | Lower |
| Coordination | Zookeeper/KRaft | Self-contained |
| Configuration Complexity | Higher | Lower |
Performance and Scalability
Throughput vs. Latency
Kafka excels in scenarios requiring high throughput data processing. Its design prioritizes handling massive volumes of data, making it suitable for batch and stream processing applications[2][9].
NATS prioritizes low latency messaging, making it ideal for scenarios where speed is critical:"Performance wise, NATS is much faster than Kafka... for microservice intercommunication, NATS makes more sense as there isn't too much data and NATS can handle easily."[1]
Resource Utilization
A significant difference between the two systems is their resource consumption profile:
Disk I/O : NATS typically uses fewer disk IOPS compared to Kafka, which can translate to lower operational costs in cloud environments[1].
Memory Usage : NATS has a smaller memory footprint, making it suitable for resource-constrained environments.
CPU Efficiency : NATS' Go implementation and thread-per-core architecture can be more CPU-efficient for certain workloads.
Scalability Approaches
Both systems approach scalability differently:
Kafka scales through partition distribution across brokers, enabling parallel processing. However, this requires careful planning and management of partition distribution[2][7].
NATS offers simpler horizontal scaling through its cluster capabilities and automatically balances connections across servers[11].
Messaging Models and Delivery Guarantees
Messaging Paradigms
Kafka primarily supports a publish/subscribe model focused on durable, ordered message logs. NATS provides more flexibility with several communication patterns:"NATS has built-in support for Request-Response model of messaging. To achieve similar thing in Kafka you have to build from scratch."[1]
Delivery Semantics
| Delivery Guarantee | Kafka | NATS |
|---|---|---|
| At-most-once | No | Yes (Core NATS) |
| At-least-once | Yes | Yes (JetStream) |
| Exactly-once | Yes | Yes (JetStream) |
NATS provides flexibility through its dual nature:
Core NATS : Fast, non-persistent messaging with at-most-once delivery
JetStream : Adds persistence with stronger delivery guarantees[14]
Consumer Groups
Both platforms implement consumer groups differently:"The concept of consumer group in Kafka is much cleaner than the same in NATS. In NATS it's a bit convoluted and not easily grasped by beginners."[1]
Use Cases
When to Use Kafka
Kafka is particularly well-suited for:
Big Data Processing : Handling high-volume data streams with persistence requirements
Event Sourcing : Maintaining an immutable log of events
Analytics Pipelines : Supporting data science and analytics workflows
Log Aggregation : Centralizing logs from distributed systems[2][9]
When to Use NATS
NATS excels in:
Microservices Communication : Low-latency service-to-service messaging
IoT and Edge Computing : Lightweight protocol for constrained devices
Real-time Applications : Chat, gaming, and other applications requiring immediate response
Cloud-native Architectures : Containerized environments where simplicity is valuable[2][9][11]
Hybrid Approaches
Some organizations use both systems together:"I have seen various companies using both Kafka and NATS with Kafka for more data and NATS for messaging."[1]
Authentication and Authorization
Security Models
Both platforms offer robust but different security approaches:
Kafka leverages:
Kerberos and TLS for authentication
JAAS and ACLs for authorization
ZooKeeper/KRaft for storing security configurations[14]
NATS provides:
Multiple authentication options: TLS, NATS credentials, NKEYS, username/password, tokens
Account-level isolation with configurable limits
Rich authorization capabilities with publish/subscribe permissions[14]
Multi-tenancy
NATS has a significant advantage in multi-tenant scenarios:"NATS supports true multi-tenancy and decentralized security through accounts and defining shared streams and services."[14]
Kafka, by comparison, does not natively support multi-tenancy[14].
Message Retention and Persistence
Storage Mechanisms
Kafka uses file-based persistence with a log-structured approach. Messages are retained based on configurable policies (time or size-based)[14].
NATS JetStream supports:
Memory or file-based storage
Message replay by time, count, or sequence number
Configurable retention policies[14]
Replay Capabilities
Both systems allow message replay, but with different approaches:
Kafka : Replay from a specific offset
NATS JetStream : Replay by time, count, or sequence number[14]
High Availability and Fault Tolerance
Cluster Architecture
Kafka traditionally used Zookeeper for cluster coordination, with newer versions supporting KRaft. Its architecture includes:
Leader-follower replication for partitions
Configurable replication factor
Automatic leader election[14]
NATS uses a full mesh clustering approach with:
Self-healing capabilities
Automatic server discovery
Built-in mirroring in JetStream[14]
Failure Handling
Both systems handle failures differently:"Core NATS supports full mesh clustering with self-healing features to provide high availability to clients. NATS streaming has warm failover backup servers with two modes (FT and full clustering). JetStream supports horizontal scalability with built-in mirroring."[14]
Deployment and Management
Operational Simplicity
NATS offers a simpler operational model:"NATS is easy to deploy, configure, and manage. Yea 'no zookeeper' was one of their biggest selling points, in terms of simplicity."[1]
Kafka requires more operational expertise, especially in large-scale production environments[1][11].
Monitoring and Management
Kafka provides:
Various management tools and consoles
Metrics exporters for monitoring systems
Command-line tools for administration[14]
NATS offers:
Prometheus metrics export
Grafana dashboards
CLI tools for management
Separation of operations from security[14]
Developer Experience
Learning Curve
NATS generally offers a simpler developer experience:Connecting to NATS and publishing messages is much simpler than Kafka. For Kafka you have to set certain knobs and gears before you are able to publish a message."[1]
However, some concepts like consumer groups are considered clearer in Kafka[1].
Client Libraries
Both systems offer client libraries for multiple programming languages, but their maturity varies:"Kafka and the client libraries seems to be much more stable. We had and still have issues on NATS Jetstream with Consumers..."[1]
Ecosystem and Community
Community Support
Kafka has a more established ecosystem:"Kafka has much mature eco system and community support than NATS, maybe because it's more popular and have been in industry to much longer time."[1]
Integration Options
Both platforms offer integration options:
Kafka : Rich ecosystem of connectors, Kafka Connect, Kafka Streams
NATS : Growing ecosystem, NATS-Kafka bridge for interoperability[4][5]
Real-world Experience and Considerations
Performance in Production
Production experience shows that both systems have trade-offs:"We have a project using Kafka and one using NATS Jetstream. For us there was not much difference in the effort for hosting the two. Main difference is for us the stability, especially about the client libraries."[1]
Cloud Costs
NATS may offer cost advantages in cloud environments:"For an equivalent workload NATS uses many less disk IOPS compared to Kafka, which if you are running on public clouds can make a very noticeable difference in your costs."[1]
Choosing the Right Tool
Decision Framework
When deciding between Kafka and NATS, consider:
Data volume and retention needs : Kafka for higher volumes with longer retention
Latency requirements : NATS for lowest latency messaging
Operational complexity tolerance : NATS for simpler operations
Integration requirements : Kafka for richer ecosystem
Resource constraints : NATS for more efficient resource usage
Hybrid Approaches
For some organizations, using both technologies can provide the best of both worlds:"I think when you have lots of data coming in, Kafka is better suited for the Job. For microservices communication, NATS is more suited where small bursts of messages, or many small messages."[1]
Conclusion
Apache Kafka and NATS represent different philosophies in distributed messaging systems. Kafka excels in high-throughput scenarios with complex data processing needs, while NATS shines in simplicity, low latency, and operational efficiency.
The choice between them should be guided by your specific use case requirements, operational constraints, and performance needs. In some situations, using both technologies together might provide the most comprehensive solution.
As distributed systems continue to evolve, both platforms are likely to develop new capabilities while maintaining their core strengths, offering developers increasingly powerful tools for building resilient, scalable applications.
