Overview

AutoMQ Table Topic offers seamless integration with Iceberg, allowing streaming data to be ingested into data lakes for analysis and querying. This article introduces the technical architecture, principles, and core concepts of Table Topic functionality.

Architecture and Advantages​

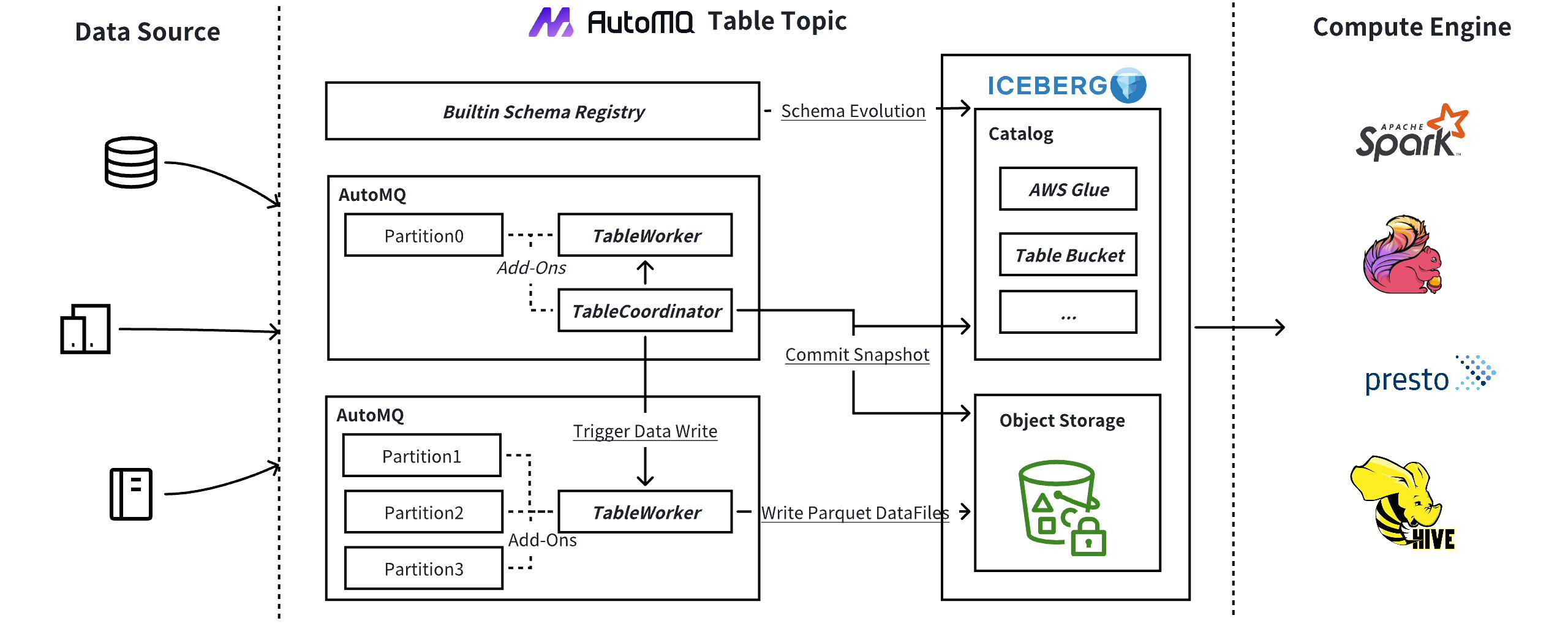

AutoMQ Table Topic enables real-time data lake ingestion and query analysis through its embedded streaming table architecture. The technical architecture is outlined below:

Table Topic has several advantages over traditional ETL data lake ingestion solutions:

Table Topic has several advantages over traditional ETL data lake ingestion solutions:

  • Out of the Box: With just one click, you can activate AutoMQ Table Topic to effortlessly stream data into Iceberg tables for continuous, real-time analytics.

  • Built-in Schema Registry: The built-in Kafka Schema Registry is ready to use. Table Topic leverages registered schemas to automatically create Iceberg tables in your catalog services (e.g., AWS Glue) and supports automatic schema evolution.

  • ETL-Free (Extract, Transform, Load): Traditional data lake ingestion methods often require intermediary tools such as Kafka Connect or Flink. Table Topic eliminates such ETL pipelines, significantly reducing costs and operational complexity.

  • Auto Scaling: AutoMQ features a stateless and elastic architecture that allows brokers to seamlessly scale up or down with dynamic partition reassignment. Table Topic leverages this framework to effortlessly handle ingestion rates from hundreds of MiB/s to several GiB/s.

  • Seamless AWS S3 Table Integration: Table Topic seamlessly integrates with S3 Table, leveraging its Data Catalog and maintenance features such as compression, snapshot management, and unreferenced file deletion. This integration also facilitates large-scale data analytics through AWS Athena.

Constraints and Limitations​

Using the AutoMQ Table Topic feature requires meeting the following conditions:

  • Version Constraint: The AutoMQ instance version must be >= 1.4.1.

  • Instance Constraint: The Table Topic feature must be enabled during the creation of the AutoMQ instance. Once the instance is created, the Table Topic feature cannot be enabled later.

  • Catalog Requirement: To use Table Topic, users must provide an external, available Data Catalog service. Currently, AutoMQ supports the following Catalog types:

    • AWS S3Table Catalog: AWS S3 offers a new Table Bucket, equipped with built-in catalog management and data lake storage.

    • AWS Glue Catalog: AWS Glue provides unified catalog management in the cloud and supports integration with query tools such as Athena.

    • Hive Catalog: Customers can provide catalog support themselves based on the Hadoop ecosystem's Hive Metastore, or they can purchase cloud provider-hosted EMR HMS services.

Workflow​

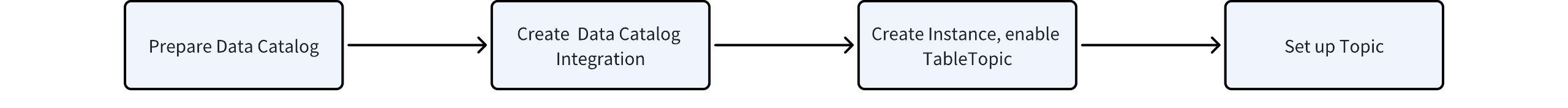

Users need to follow the configuration workflow when using the AutoMQ Table Topic feature as outlined below:

Tip

Note:

When configuring a Topic for stream table processing, you can freely modify the default Topic parameter configurations. For related parameter information, refer to Restrictions▸.
